Password Recovery

Sections:

• Switch Recovery
• Router Recovery

Use Case Scenarios:

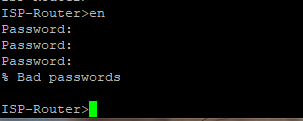

• Regain access to the device
• Minimize network downtime
• Security and access control

Switch Recovery

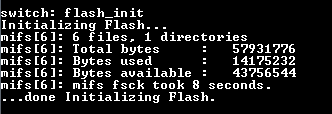

Enter RONMON Mode.

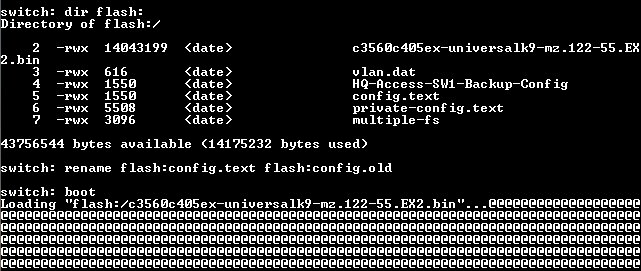

Rename current running-config and reload to ignore.

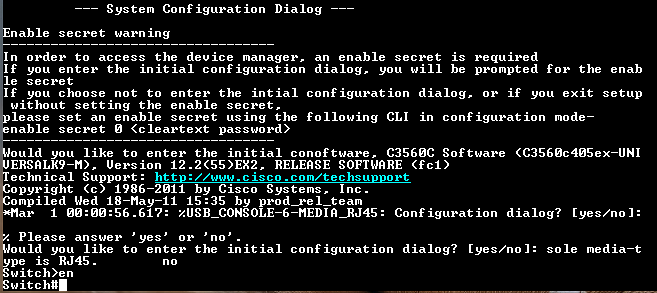

Once accessed rename current running-config back to config.text then update password.

Router Recovery

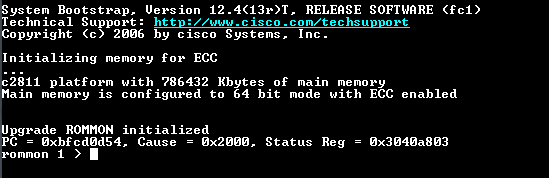

Upon rebooting router, send break sequence at initializing phase to enter RONMON mode (Ctrl+C).

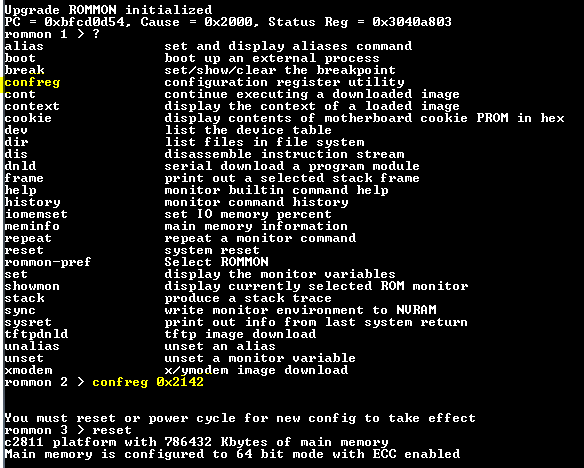

Change confreg value to 0x2142 to ignore the startup-config after reload.

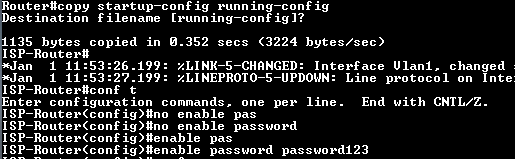

Save the startup-config to the running-config then replace password.

Change the config-register value to 0x2102 to reload normally and then save running-config to startup-config.

Reload and use the new password to access device.
