Overview

Sections:

• Key Benefits
• Reduction of Spanning Tree

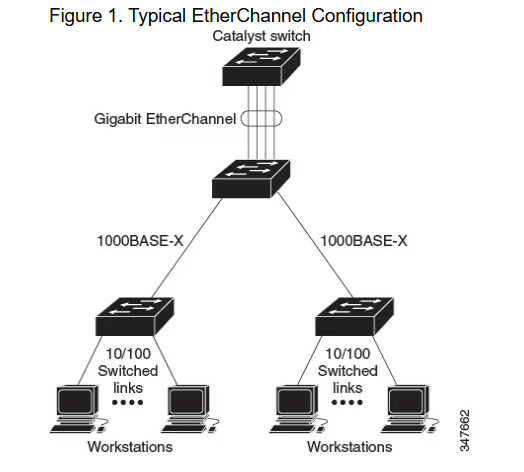

Overview:

• EtherChannel is a technology that is used to combine multiple physical Ethernet links into a single logical link
• EtherChannel is often used in environments that require high bandwidth and redundancy, such as between switches, servers, or routers
• EtherChannels improve the scalability and reliability of networks, especially in high demand or high traffic environments such as data centers
• Another common way EtherChannels are implemented are for alternative cost effective ways to increase bandwidth utilization versus investing in expensive interface cards for devices such as switches or routers

How it Works:

• EtherChannel can be configured using the following modes and protocols
  • Port Aggregation Protocol (PAgP)
    • A Cisco proprietary protocol that negotiates the formation of channels between Cisco devices
  • Link Aggregation Control Protocol (LACP)
    • An open 802.3ad standard that performs the same functions as PAgP but supported across various vendors
  • Static On
    • A manually configured EtherChannel without the use of negotiation tactics

Key Benefits of EtherChannels

EtherChannels are highly beneficial, especially in environments where network reliability, performance, and scalability are critical. LACP and PAgP both serve the same primary purpose to allow the bundling of multiple physical network links into a single logical link. However, there are differences between LACP and PAgP particularly in terms of their standards, interoperability, and some configuration options. Despite these differences, both protocols offer similar core benefits.

Key Benefits

• Increased Bandwidth
  • EtherChannel aggregates multiple physical links, increasing the overall data throughput between devices
• Link Redundancy
  • If one physical link fails, the remaining links in the channel can continue to carry traffic to ensure network availability
• Load Balancing
  • Offers support for load balancing, distributing traffic across multiple links based on various methods to optimize network performance
• Simplified Management
  • Instead of managing multiple physical links individually, EtherChannel treats them as a single logical link to simplify management

Reduction of STP (Spanning Tree Protocol)

One of the many key benefits EtherChannels offer is the ability to reduce the impact of the Spanning Tree protocol on a network. While Spanning Tree effectively prevents network loops, it also disables certain links in the network to ensure there is only one active path between switches. This alone limits the redundancy of the extra links and therefore leads to inefficient use of network resources and overall bandwidth utilization. EtherChannels can help optimize Spanning Tree performance by consolidating multiple physical links into a single logical link effectively reducing the number of links Spanning Tree needs to manage. While EtherChannels alone do not completely eliminate Spanning Tree, they provide improvements in network redundancy, bandwidth utilization, and convergence speed.

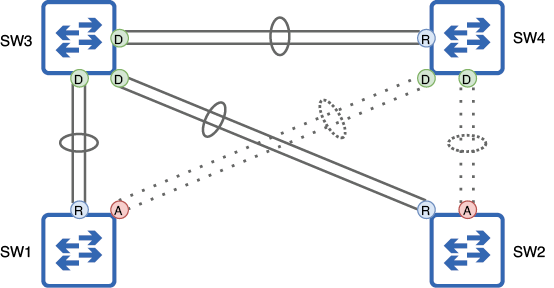

Ways EtherChannels optimize Spanning Tree

• Single Logical Link
  • In a traditional network, multiple links between switches can cause loops, requiring STP to block some of the links
  • EtherChannel bundles multiple physical links into a single logical link reducing the number of links STP has to manage
• Reduced STP Convergence
  • Because EtherChannel treats multiple links as one, STP considers the entire EtherChannel as a single link
  • This reduces the number of individual STP calculations and helps the network converge faster
• Preventing Redundant Blocking
  • In a traditional network, redundant paths may be blocked by STP to avoid loops
  • EtherChannel reduces the need for blocking because the aggregated link provides redundancy with multiple interfaces
  • If one physical link fails in the bundle, STP doesn't need to block the EtherChannel as traffic shifts to the remaining links in the bundle
• Improved Network Stability
  • By reducing unnecessary STP recalculations and blocking, EtherChannel increases the stability of the network and optimizes the use of available links
