Native VLANs

Sections:

Use Case Scenarios:

Native VLANs are typically used to carry management traffic such as CDP and Spanning Tree

Overview:

Now that we have learned about Trunk ports, Native VLANs are closely associated with trunk ports
The Native VLAN carries untagged traffic (frame without a VLAN tag) on a trunk link
If a switch sends an untagged frame over a trunk link, the receiving switch or firewall/router will assign the frame to the native VLAN
By default, the native VLAN is set to VLAN1 on Cisco switches
It is best practice to change the native VLAN to an unused VLAN other than 1 for security purposes

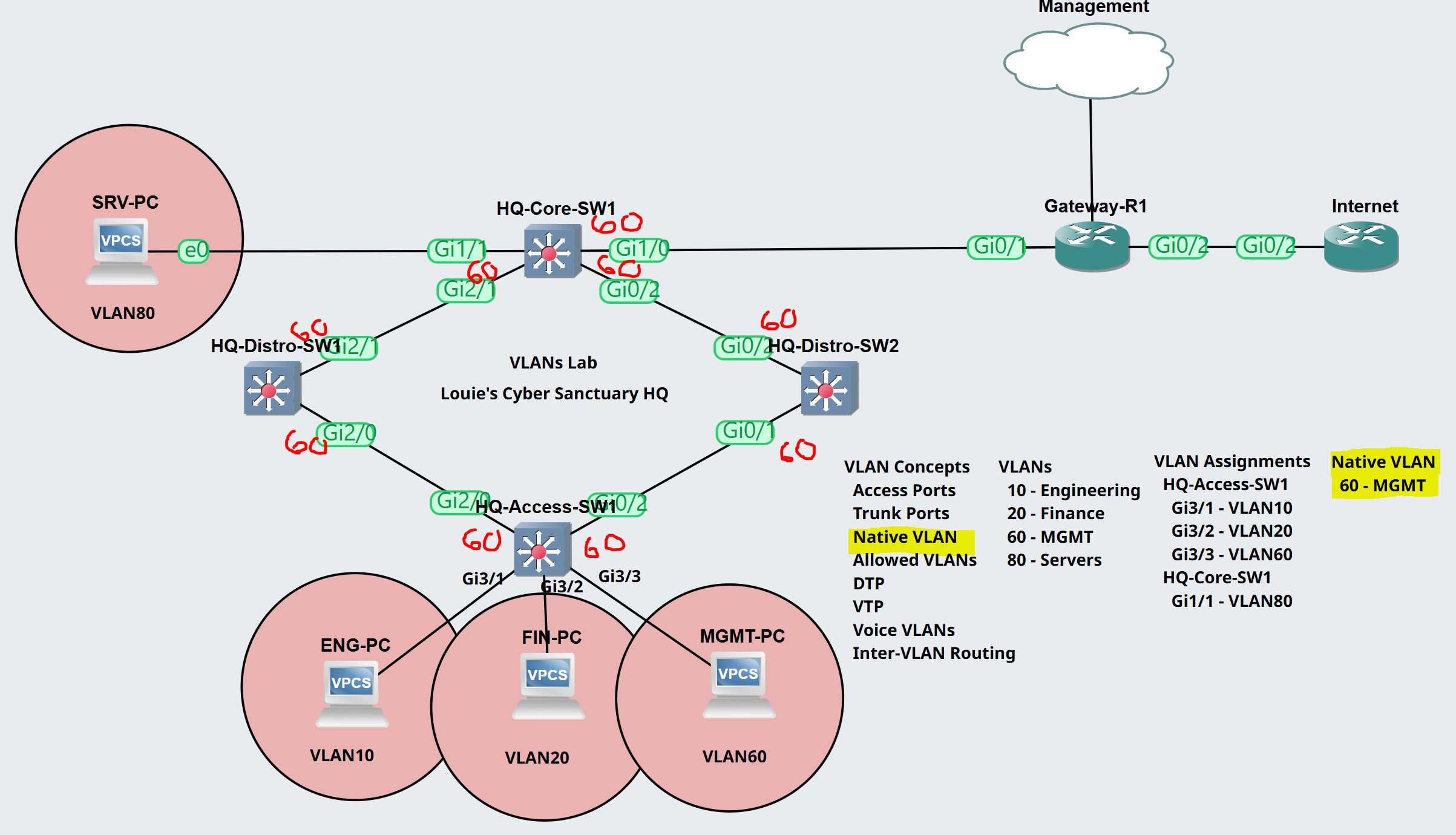

Lab Topology

Scenario:

In this lab topology scenario I will configure the native VLAN on all ends of the trunk links between switches including the uplink towards Gateway-R1 from HQ-Core-SW1
Native VLAN Mismatch
- It's important to ensure both sides of a trunk link have the same native VLAN configured to avoid issues and ensure correct frame handling

Native VLAN Configuration

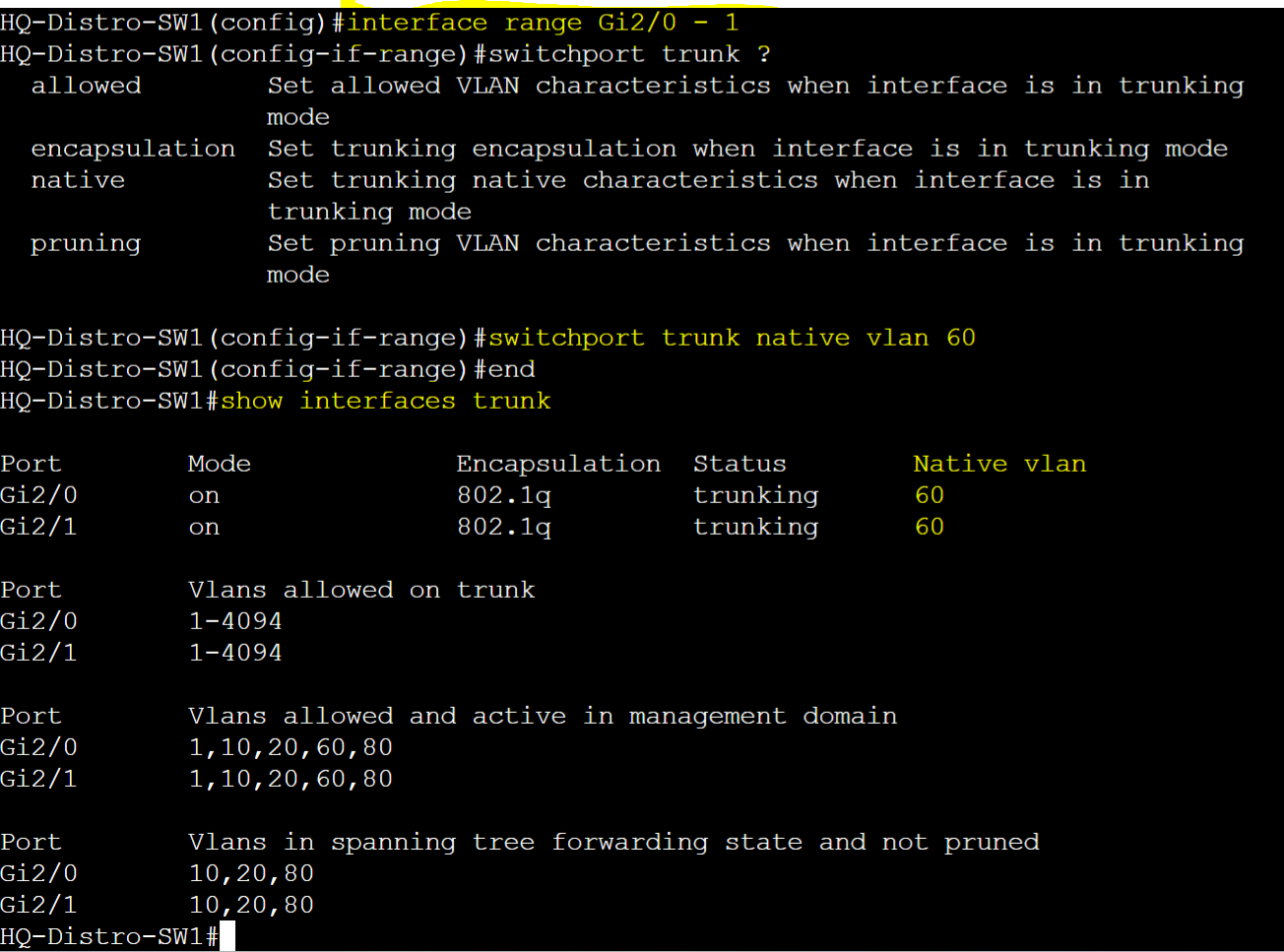

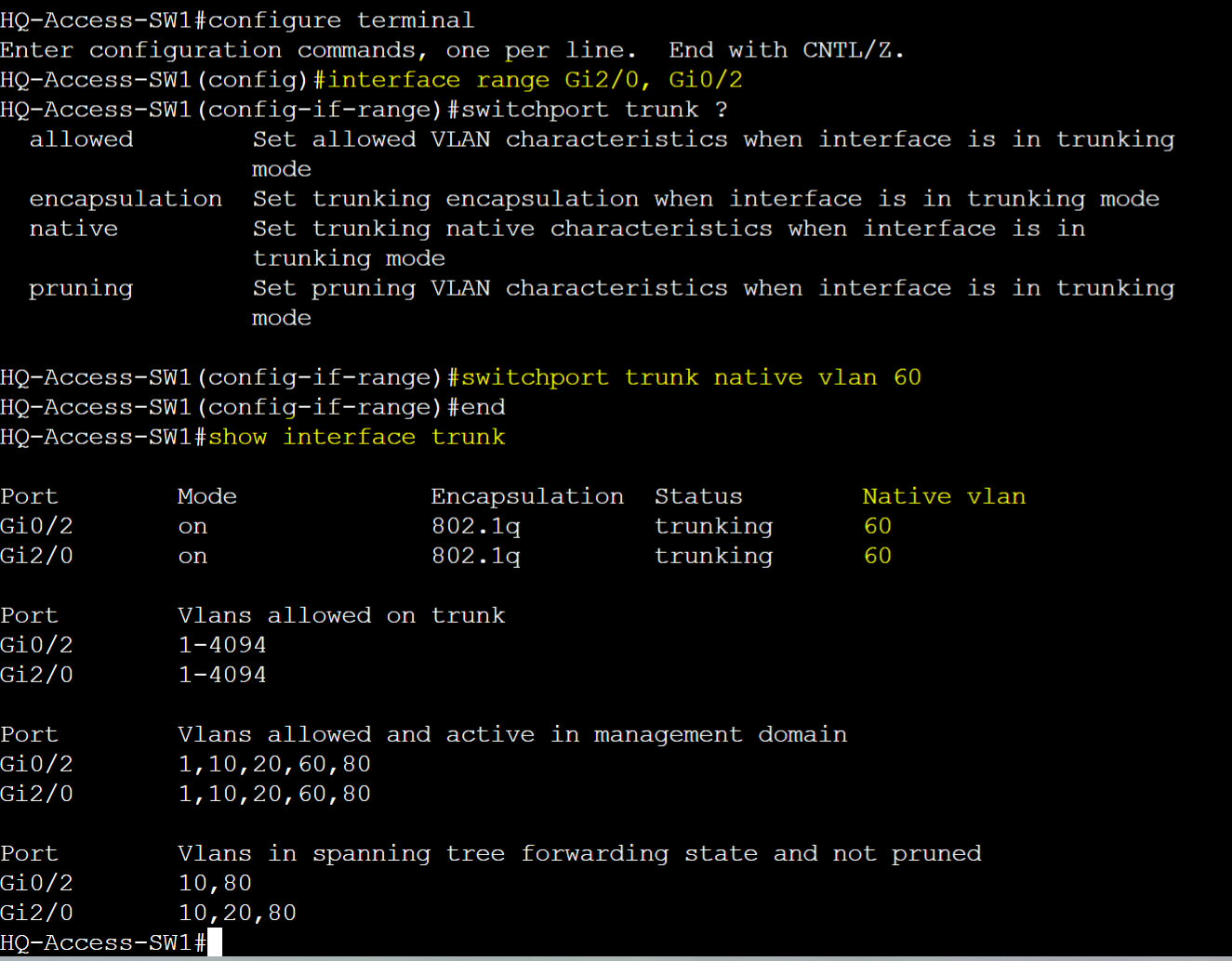

HQ-Access-SW1

HQ-Distro-SW1

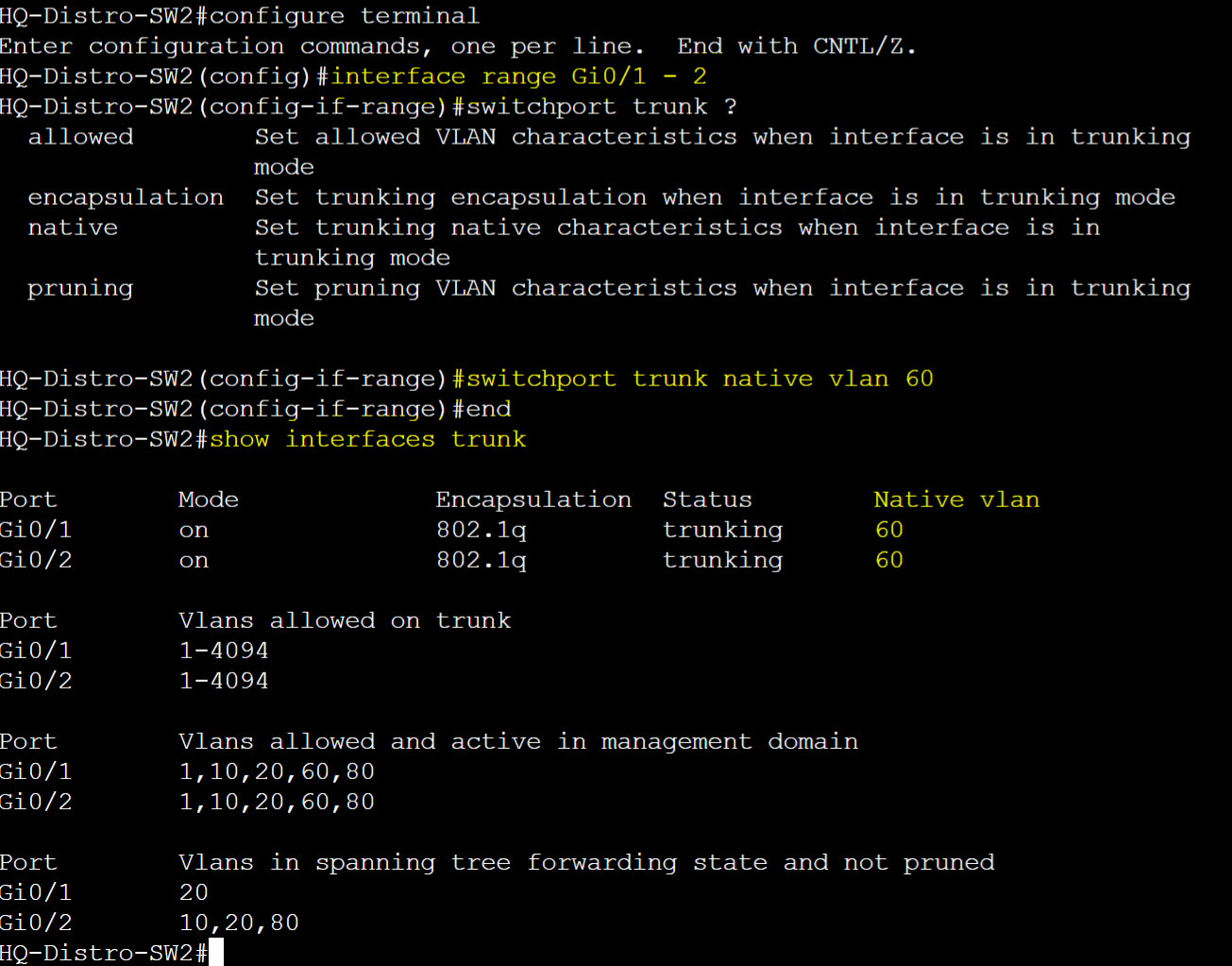

HQ-Distro-SW2

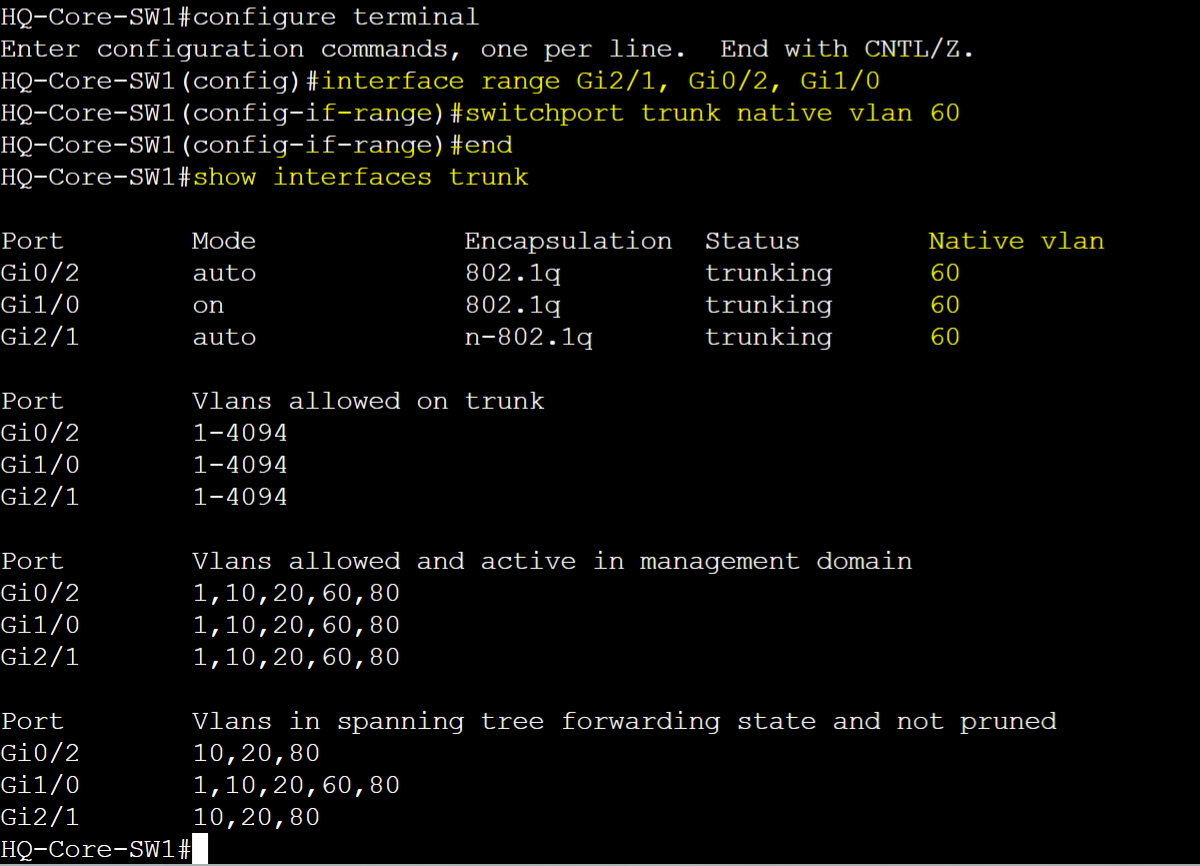

HQ-Core-SW1

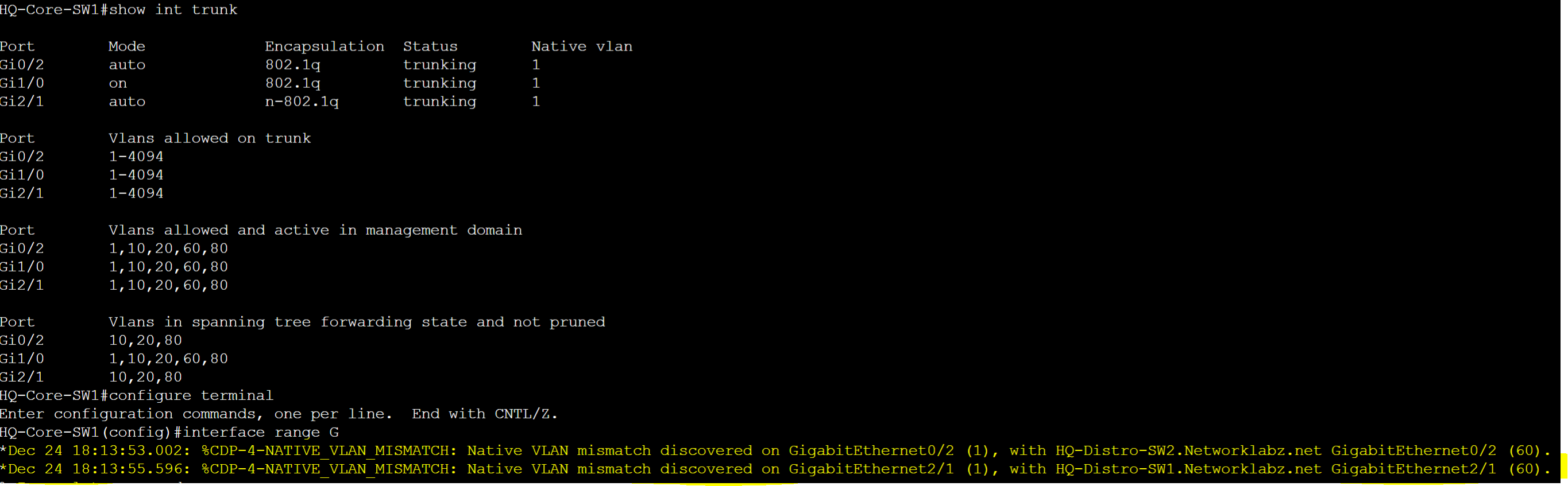

Native VLAN Mismatch on HQ-Core-SW1

To summarize the scenario, the native VLAN of 60 has been configured on both ends of the trunk links between switches.

Note: If CDP is enabled on the Cisco switches, CDP will detect and notify you of a Native VLAN mismatch to correct

Interface Configuration Commands
- To set the native VLAN
  - switchport trunk native vlan <vlanID>
- To verify native VLAN on trunk ports
  - show interfaces trunk

VLAN Hopping Attacks

Scenario:

In this scenario lets discuss two VLAN Hopping attack methods that can occur if best practices are not followed

Double Tagging

How it Works:

A VLAN hopping attack occurs when an attacker sends traffic from one VLAN to another bypassing normal VLAN isolation
This attack allows the attacker to gain unauthorized access to traffic in other VLANs compromising sensitive data

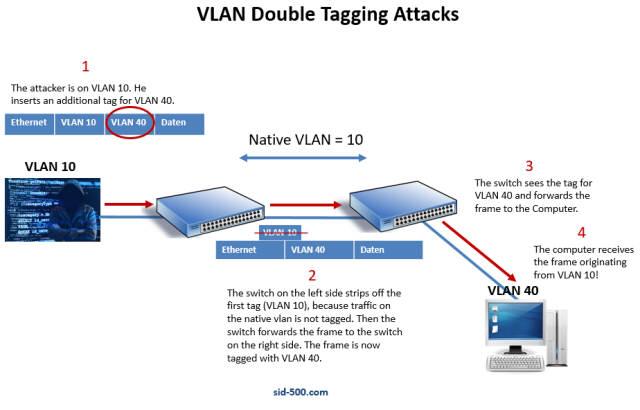

Using the Double Tagging method, the attacker modifies the packet it intends to send by attaching a second inner VLAN tag in addition to the first outer tag corresponding to the target VLAN (often VLAN 1)
A key concept with 802.1Q is that frames of the native VLAN are never tagged which in this scenario, causes the first switch in the path to strip off the outer tag leaving the malicious second inner VLAN tag to be forwarded onto the next switch
At this point, the next switch sees the VLAN tag that was maliciously inserted in the packet by the attacker and forwards it to a VLAN that is different from the attacker breaking the rules of VLAN isolation

Double Tagging Mitigations:

By default all switchports are assigned to native VLAN 1
- Best practice is to change the Native VLAN on trunk ports as attackers often target VLAN 1 as it is commonly used as the native VLAN for trunk ports
Disable VLAN 1 on Trunk ports
- Ensure trunk ports only carry the VLANs that are needed

Switch Spoofing

How it Works:

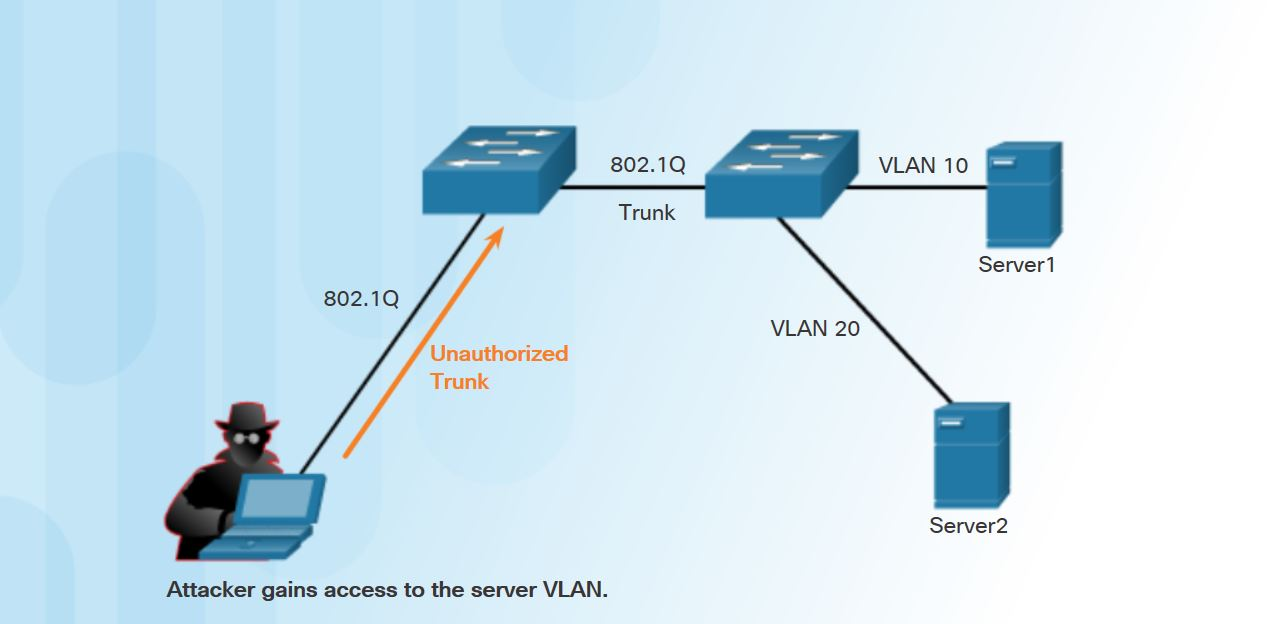

Using the Switch Spoofing method, a rogue switch establishes a trunk link with a production switch gaining unauthorized access to multiple VLANs in the network
This method exploits the DTP or Dynamic Trunking Protocol which is used by switches to negotiate trunking automatically between connected switches
The attacker can either utilize a rogue switch or configure their machine to behave like a switch by enabling DTP on their PC interface
Once the attacker forms a trunk link with a production switch, the attacker can now send tagged frames for any VLAN on the trunk gaining unauthorized access to sensitive information

Switch Spoofing Mitigations:

Disable DTP
- It is best practice to disable the DTP protocol on switches to prevent switches forming trunk links with unauthorized switches
- In a future concept we will dive deep into how DTP works
Manually configure Trunk links to disable dynamic trunking
Set ports to Access mode for End Devices

Other VLAN Hopping Mitigations:

There are various other best practices to avoid VLAN Hopping attacks and will be discussed more in depth in future lessons.
