Monitoring Map & Floor Plans
Sections:
Resources:
Overview:
- In Cisco Meraki, the monitoring Map & Floor Plans page is a feature that allows you to upload and view a visual representation of your Meraki network layout. These floor plans can then be used on various other pages in the Dashboard that utilize maps
Map & Floor Plans Overview

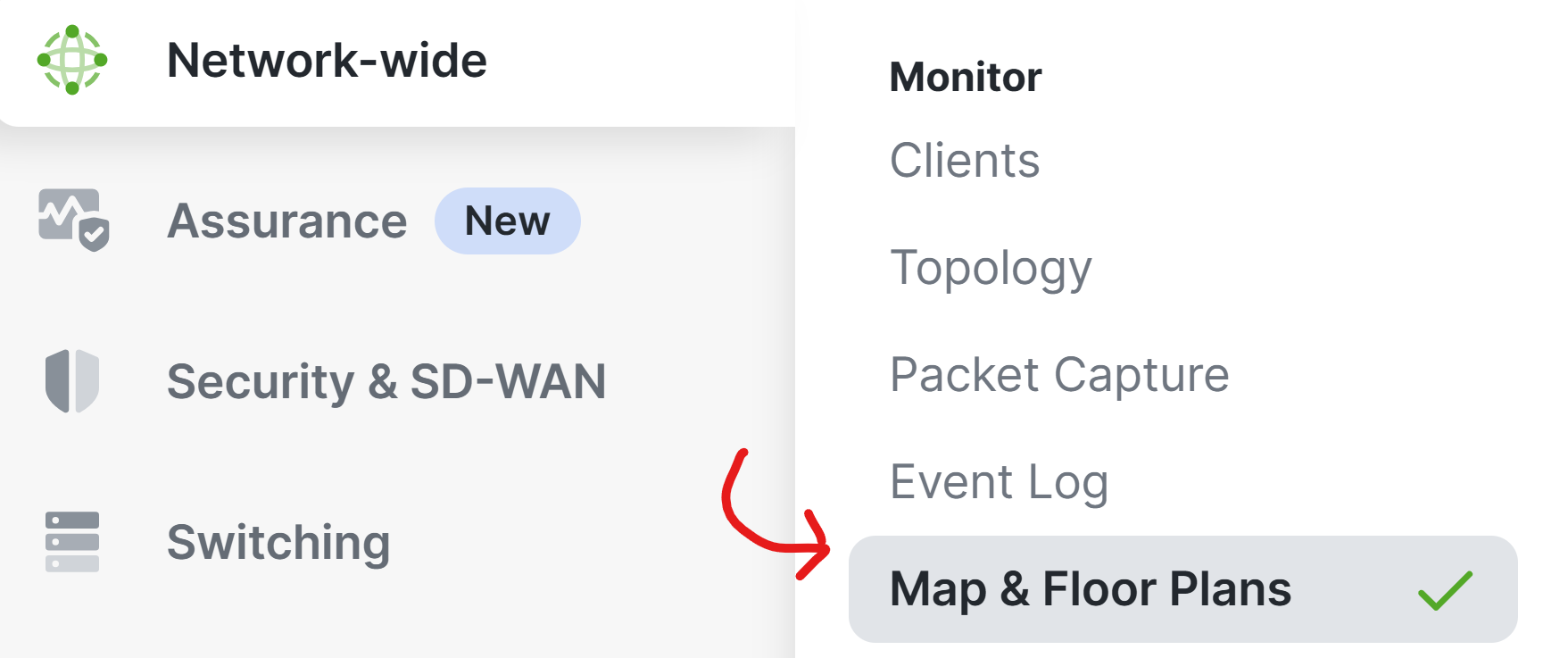

Map & Floor Plans Page Menu
Map & Floor Plans
- Meraki allows admins to upload and align custom floor plans for the use of placing and organizing Meraki network devices
- Custom floor plans can be uploaded in JPEG, GIF, and PNG image formats. Per Cisco, if issues are encountered when uploading an image, ensure the browser used is up to date
- Available Map & Floor Plan Features
- Uploading & Aligning Custom Floor Plans
- Deleting & Renaming Custom Floor Plans
- Placing Devices on the Map/Floor Plan
- Removing Devices from the Map/Floor Plan
- Map Options
- Map Type (Map vs Satellite View)
- Floor Plan (Select Floor Plan View + Opacity)
- Overlays (Neighbors vs Mesh)
- Markers (Display Device Icons)
Map & Floor Plans Page Overview

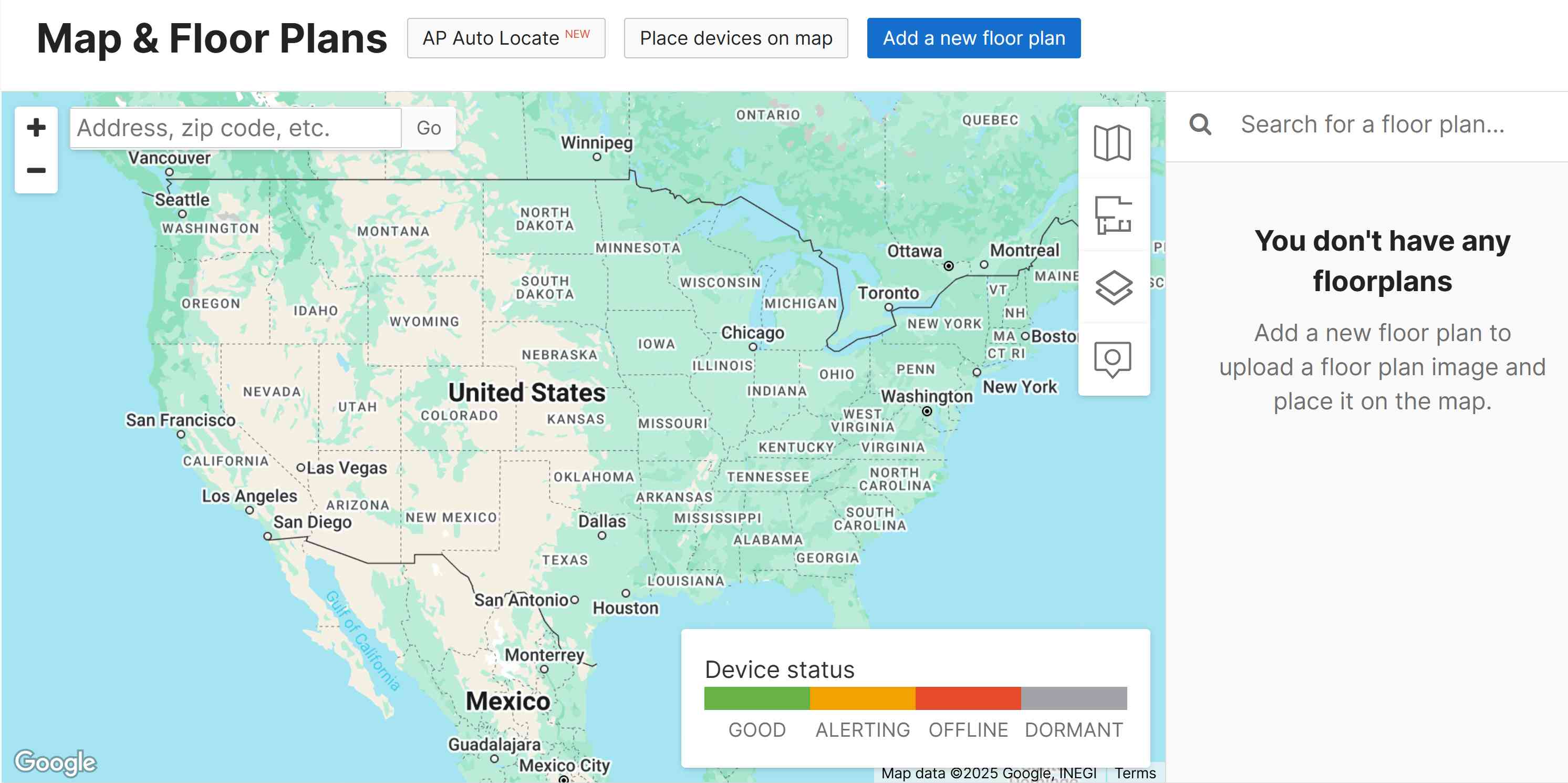

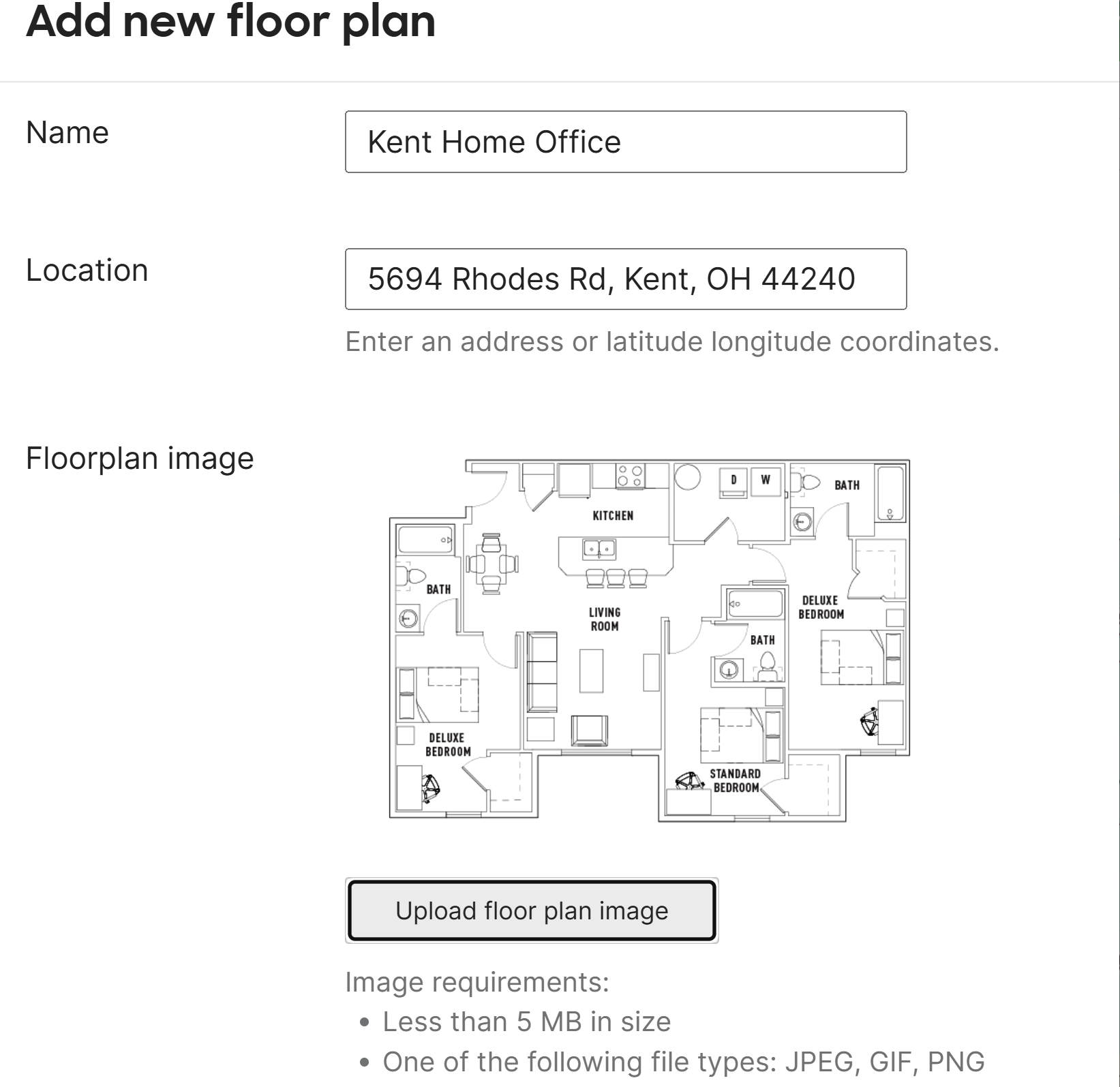

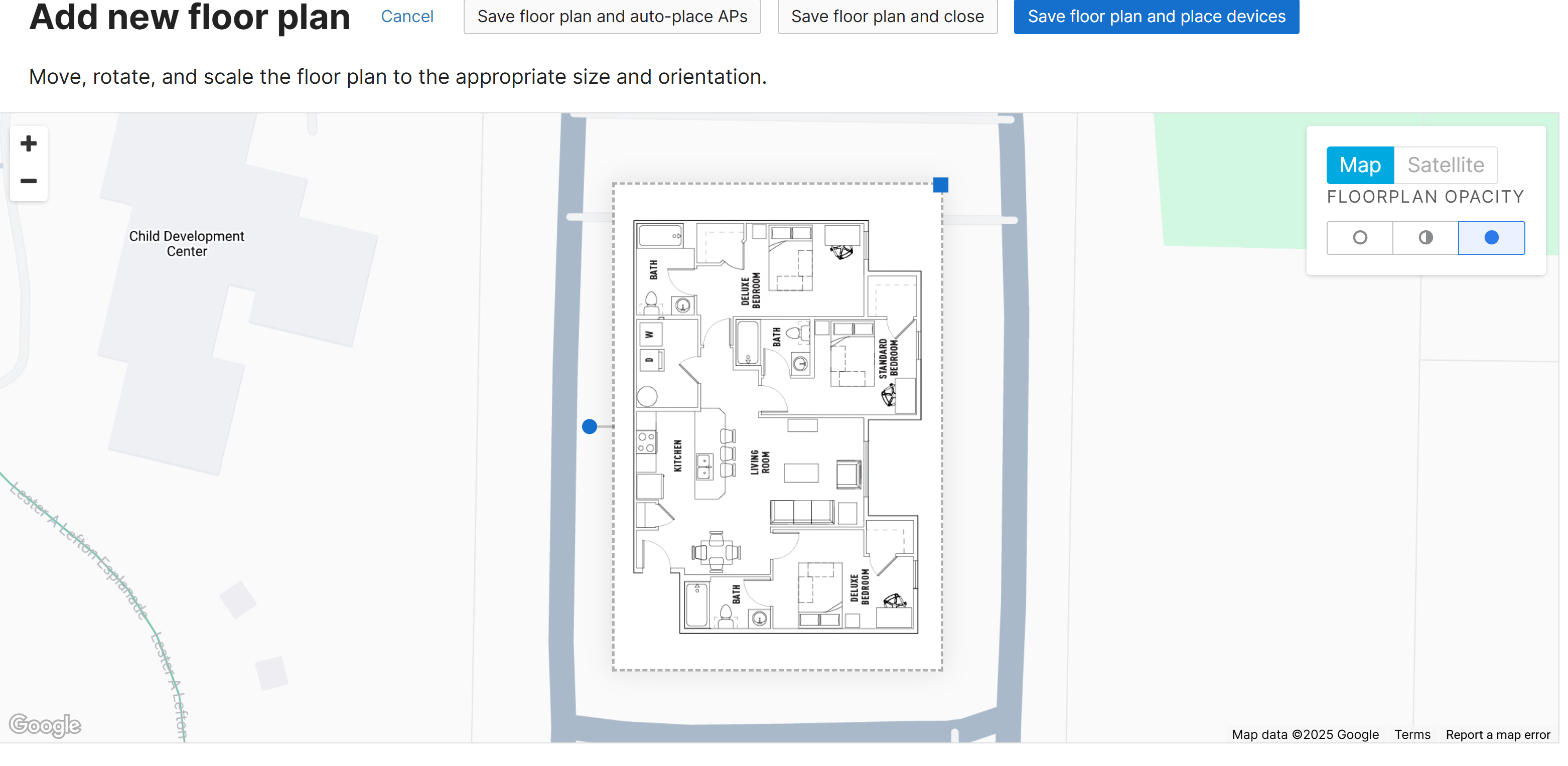

Map & Floor Plans - Defining Custom Floor Plan
Map & Floor Plans - Map View

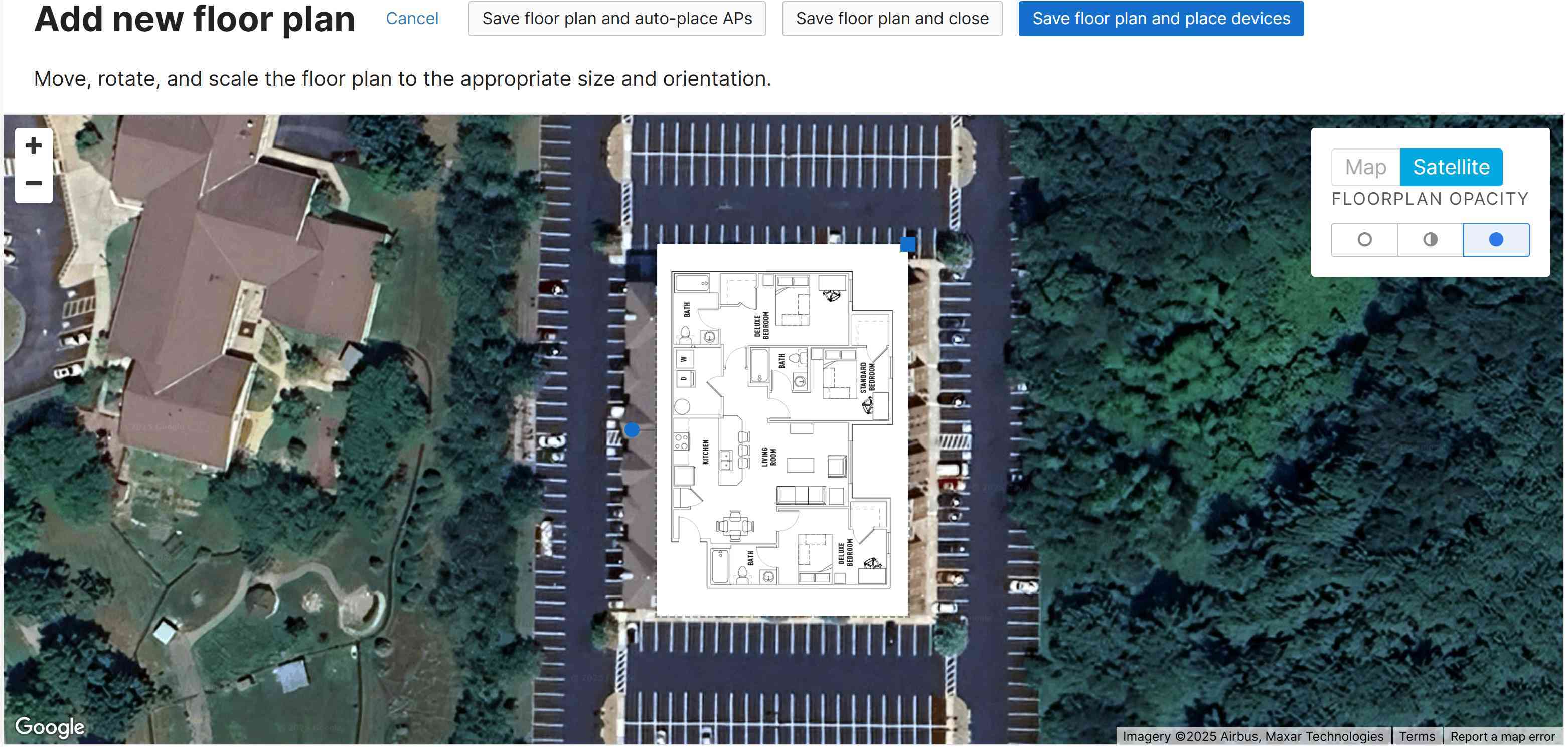

Map & Floor Plans - Satellite View

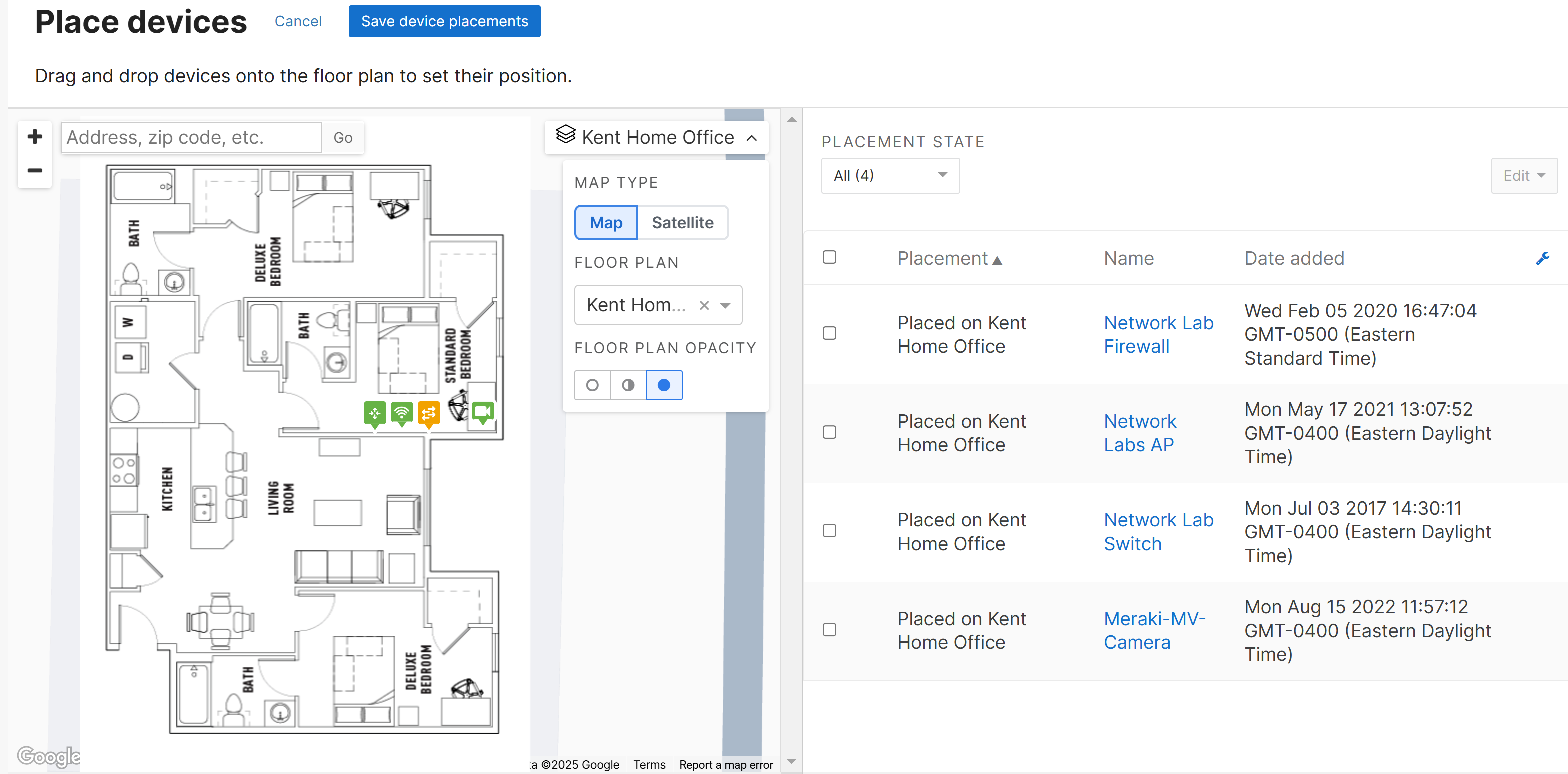

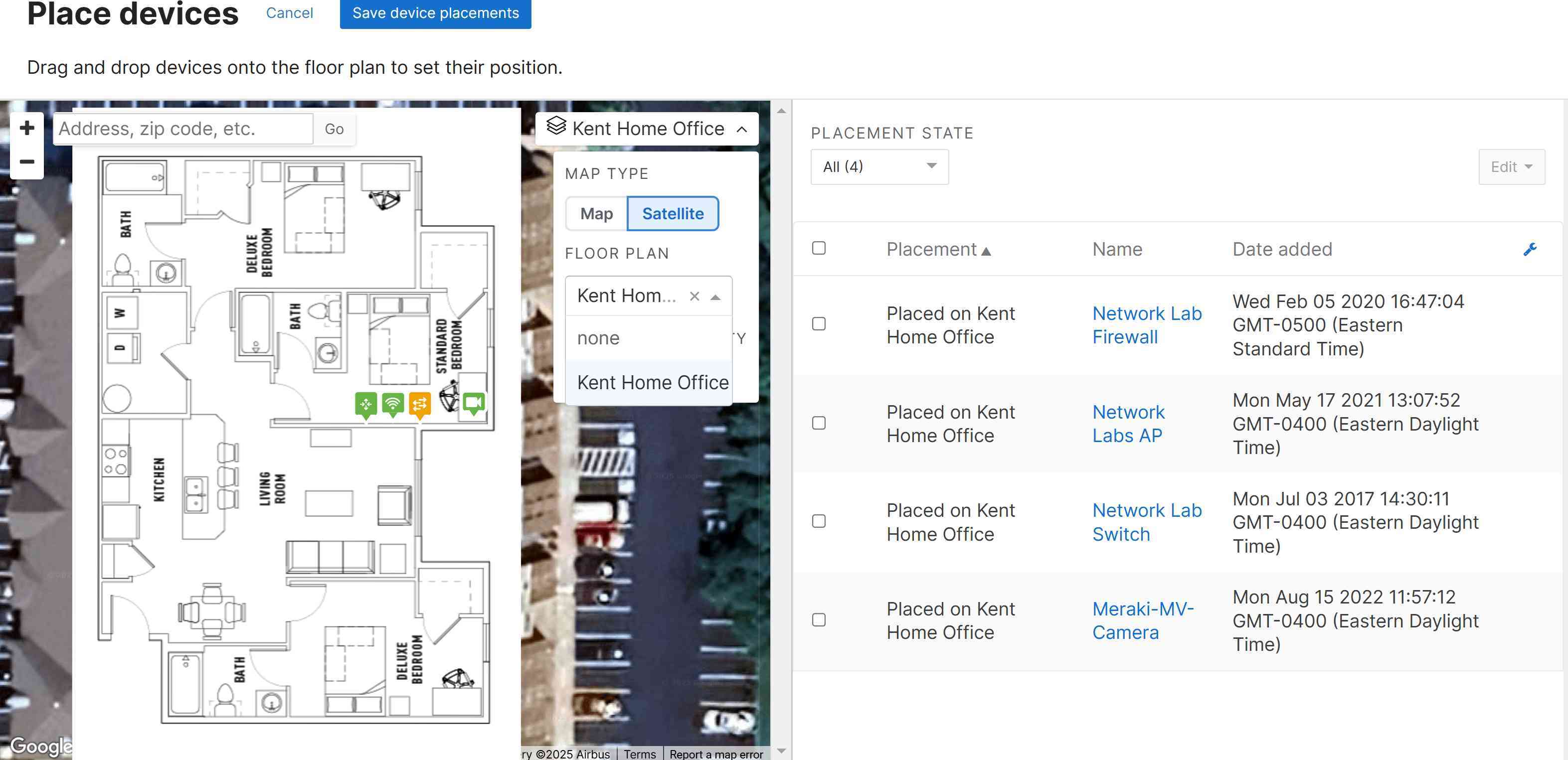

Map & Floor Plans - Placing Meraki Devices on Floor Plan by Hovering Icons
Map & Floor Plans - Ability to Select Between Floor Plans, 1st Floor, 2nd Floor, ETC

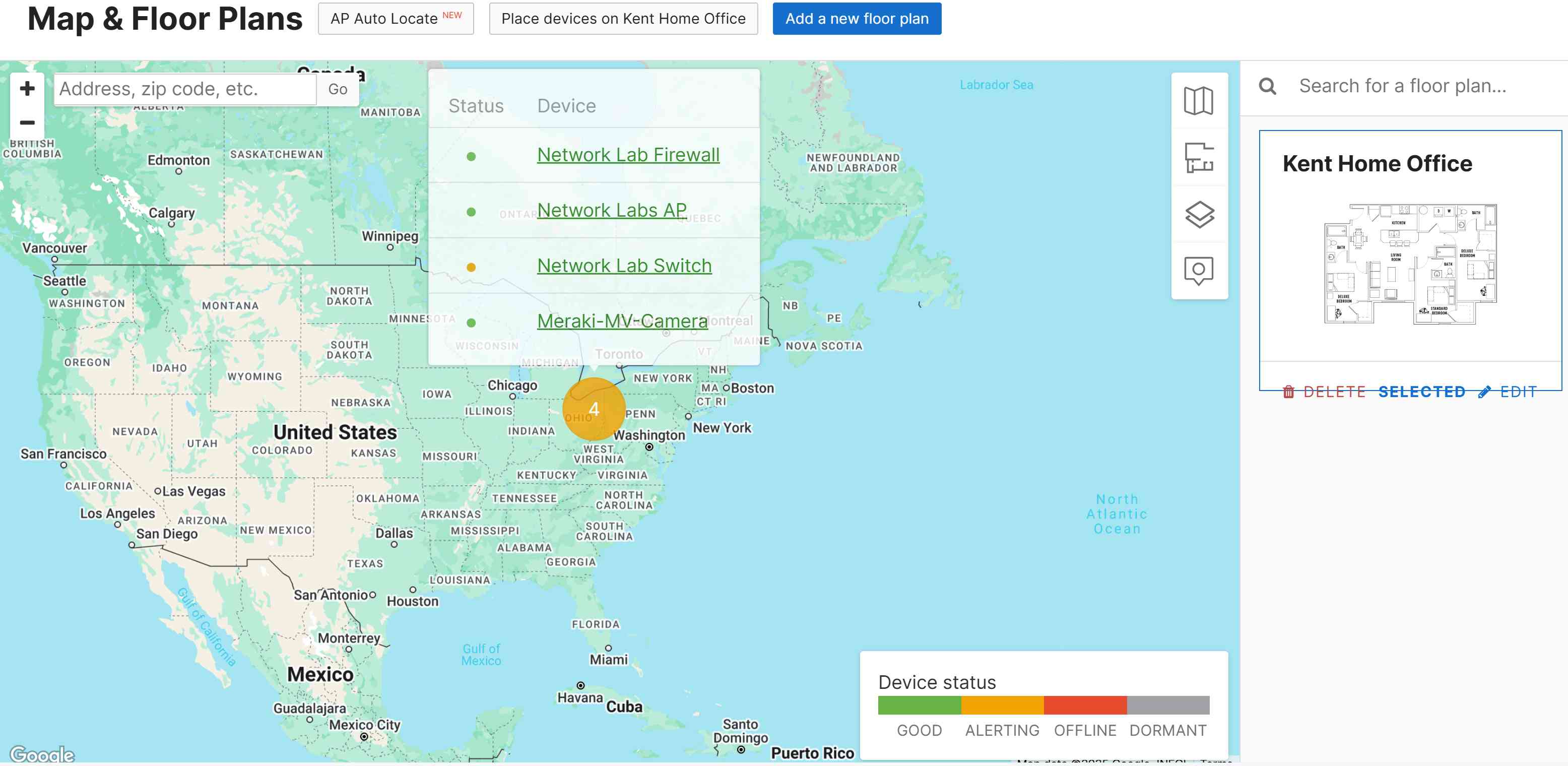

Map & Floor Plans - Geographic Overview of Floor Plans

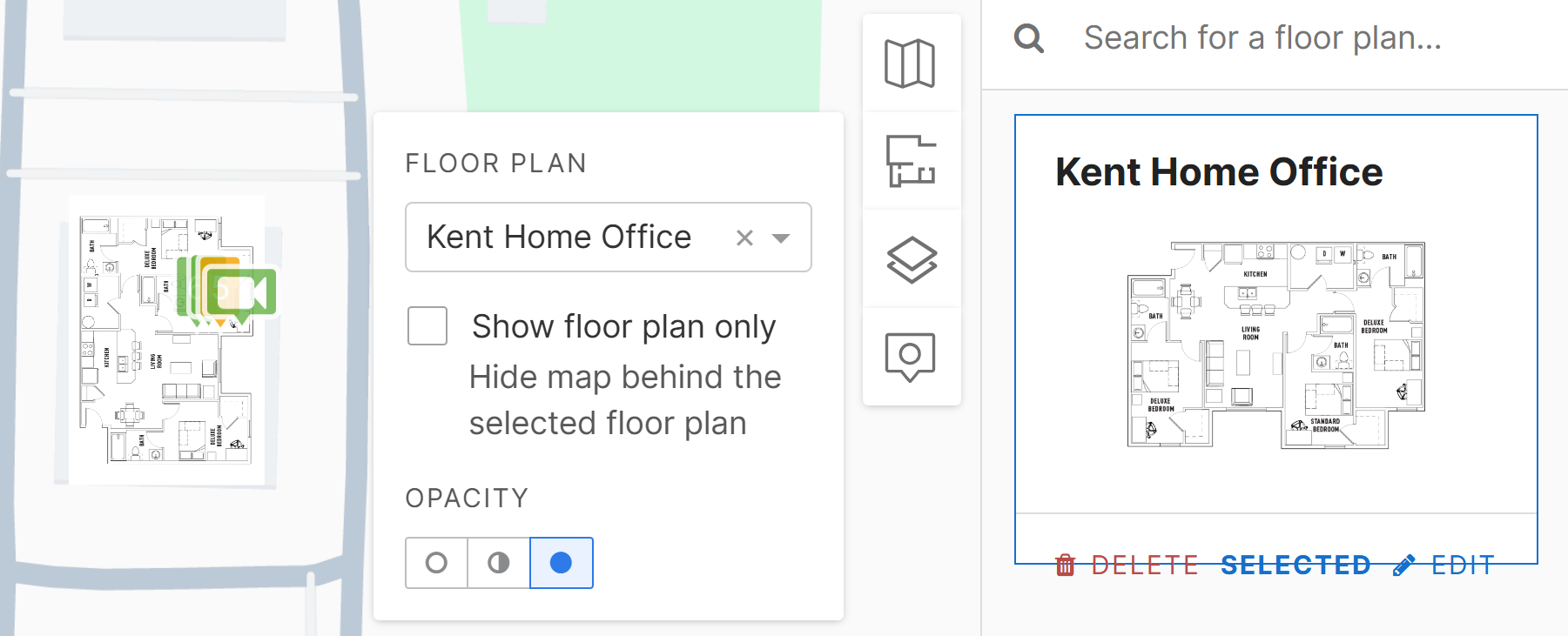

Additional Map Options - Floor Plan

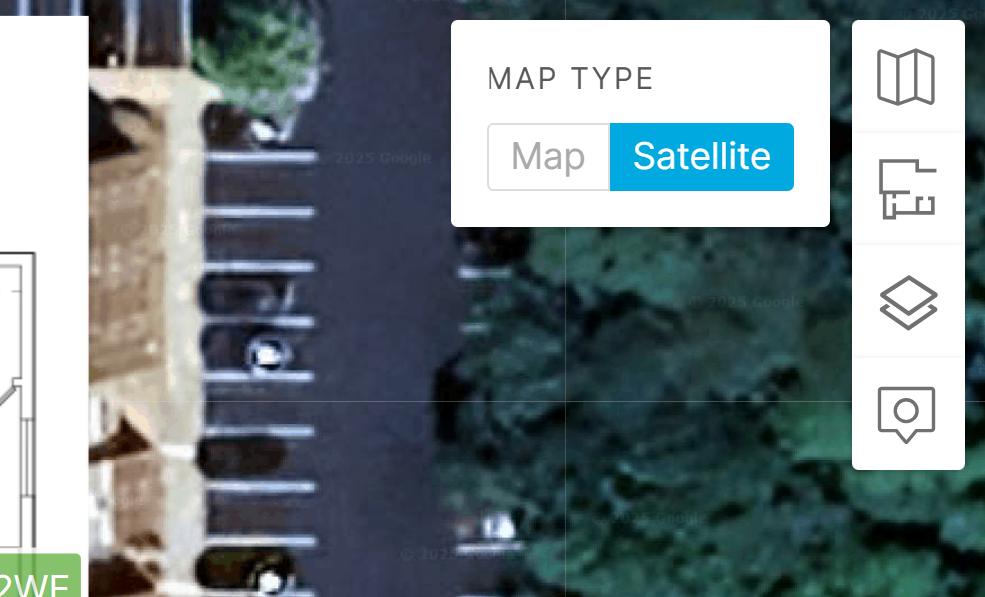

Additional Map Options - Map Type

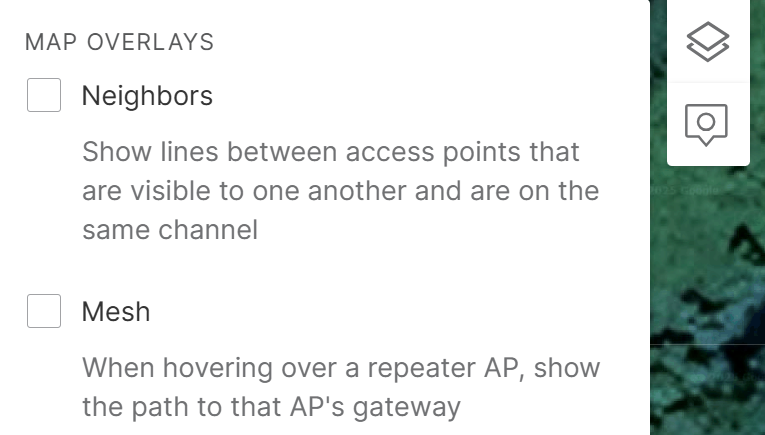

Additional Map Options - Map Overlays

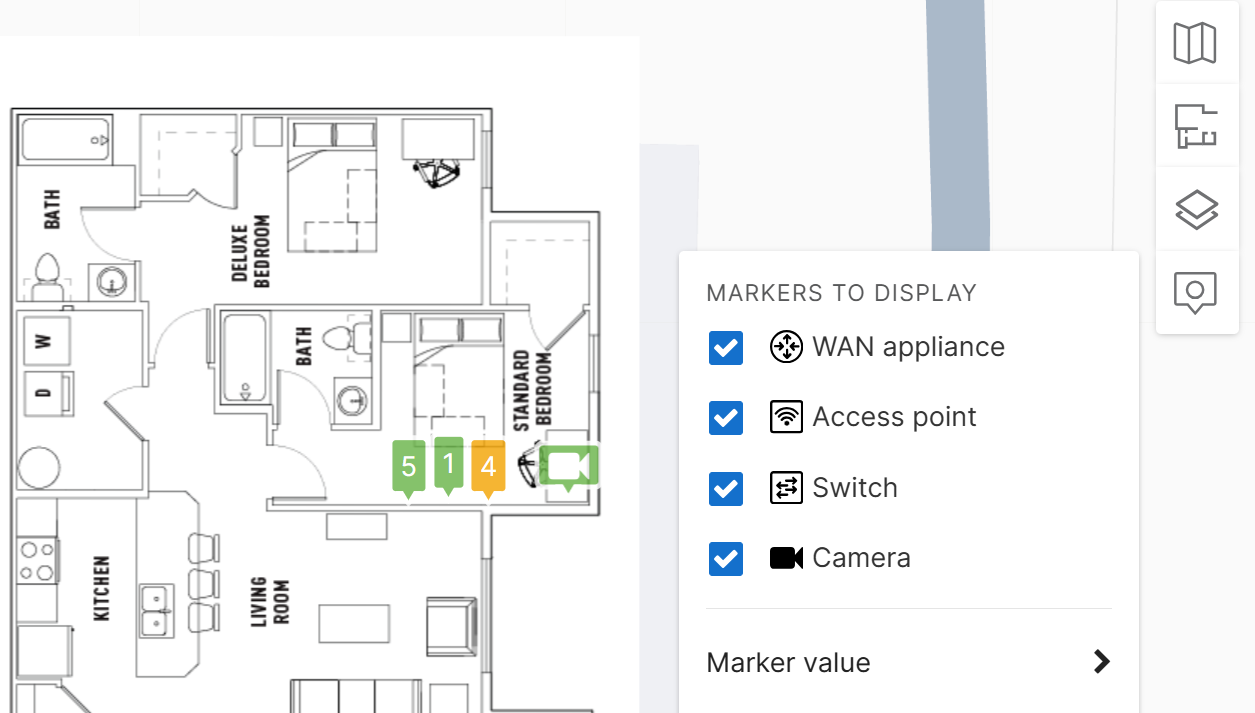

Additional Map Options - Markers

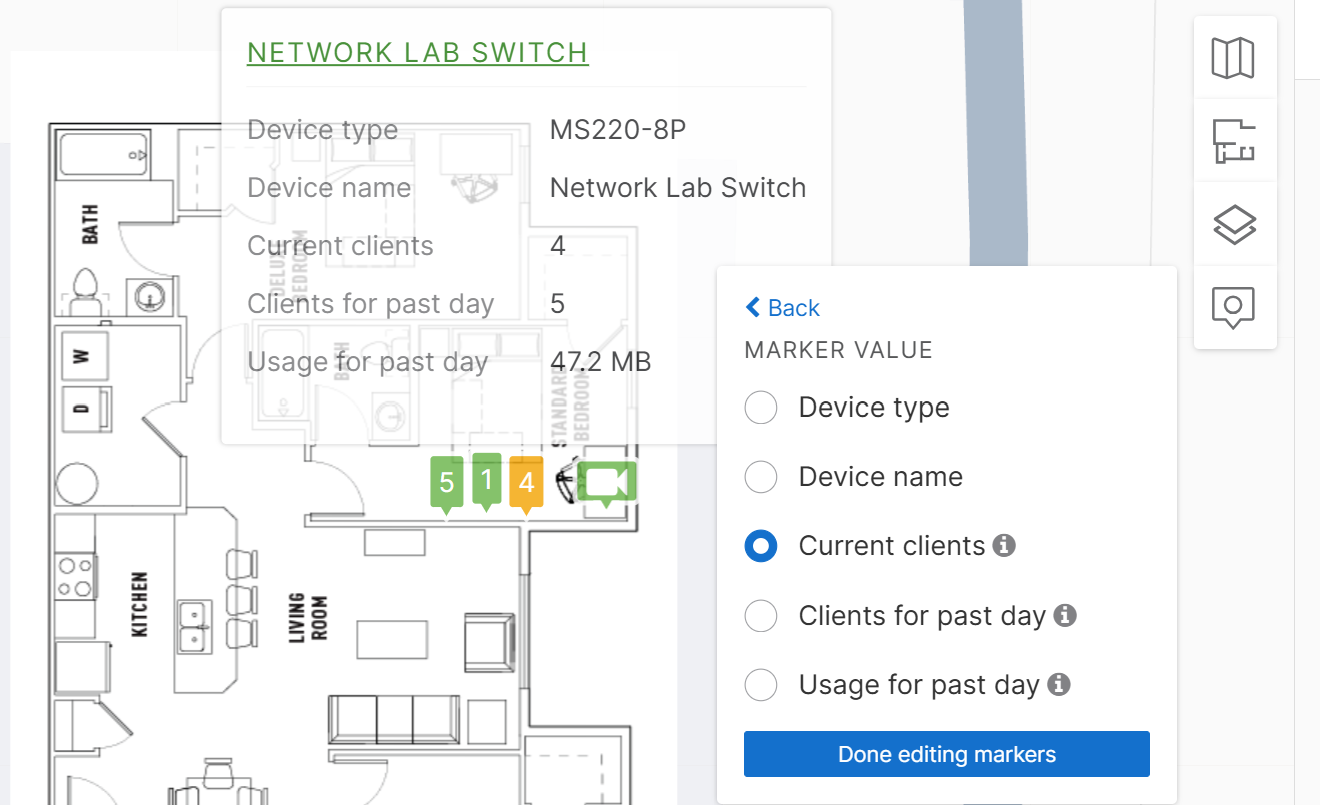

Additional Map Options - Marker Values
